Product application:
1. All kinds of satellite set-top boxes to upgrade
2. Routers, hard disk, ADSL, broadband cats firmware upgrades or crack
3. The mobile phone, XBOX360, GPS serial communication, vehicle inspection, DVDS, flash, etc
4. Burning on STC microcontroller, NXP microcontroller, renesas MCU, NEC MCU, etc
5. Simple, super terminal in the commonly used serial communication serial port debug tool
6. The electronic lovers can use USB turn signal TTL signals
Product features:

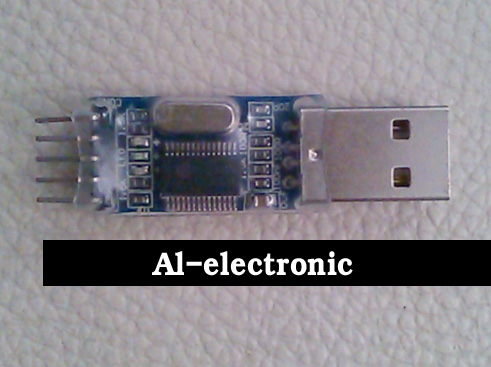

1. Adopt imported brand new original control chip PL2303HX, stability at high speed flash
3. With 500 ma self recovery fuse overcurrent protection
2. Set the two indicator data transmission can be real-time monitoring data transmission state
3. Provide 3.3 V and 5 V pin interface, convenient to the power supply system of different voltage flash

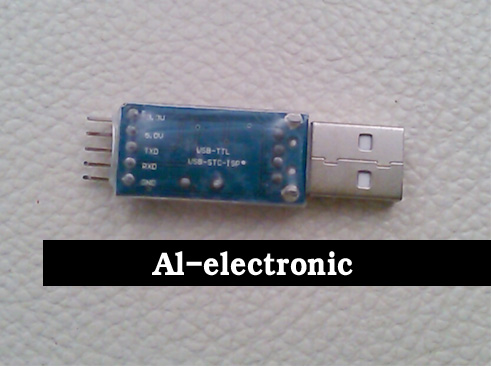

4. Interface row needle parallel to the board, rather than the board into a vertical installation, convenient when brushing lead to dupont line
5. The whole circuit USES the high quality transparent heat shrinkable casing coated, make PCB circuit into the insulation state with the outside world
To protect the board by metal accidental short circuit and burned, due to the use of transparent material, so will not affect the board
Mouth silk screen to watch with a light monitoring effect
6. The finished product packaging USES electrostatic bag packing, ensure that the quality of the boards do not broken before use
7. Support the Windows 7 system, etc
