Product Description

Features:

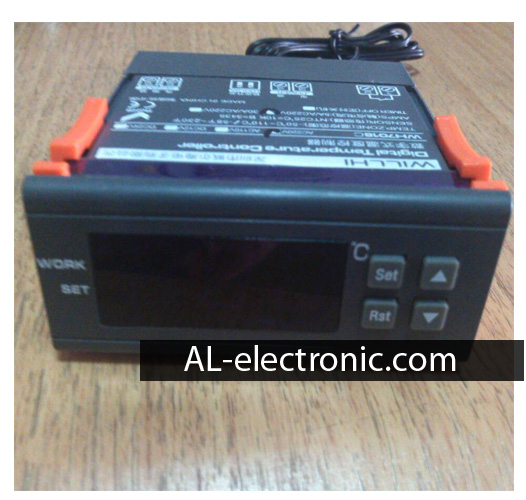

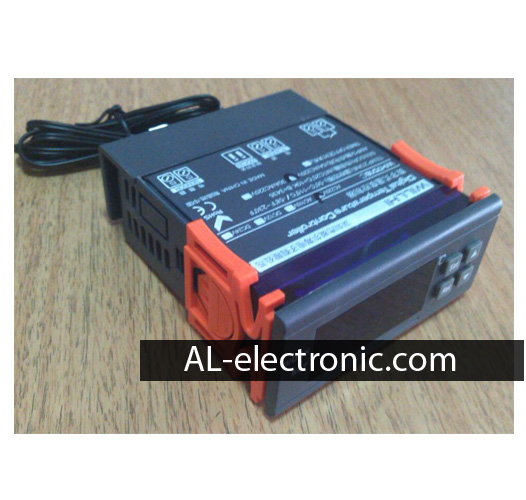

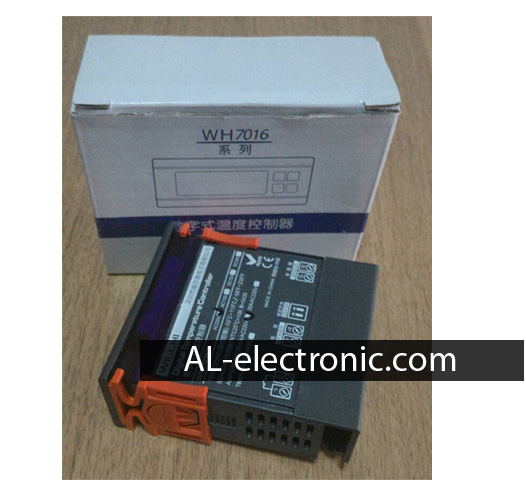

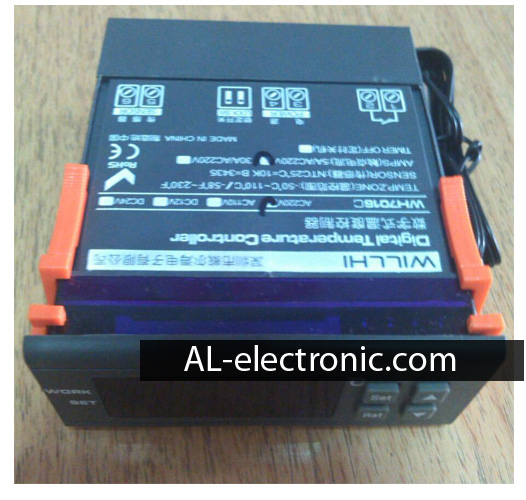

A mini temperature controller
With large and clear LCD display for better readability
Wide temperature measuring range
High performance and durable housing
Heating and cooling control
Temperature calibration function
Delay protection function
Ex-factory parameters locking function after short circuit
Upper and lower limits of temperature can be set
Can be used for domestic freezer, water tanks, refrigerator, industrial chiller, bolier, steamer, industrial equipments and other temperature-controlled systems

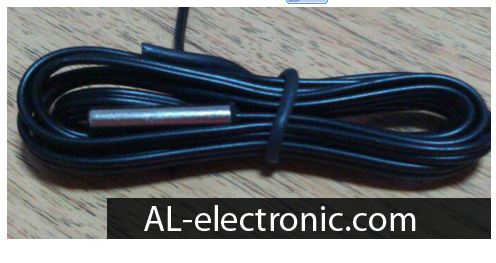

Comes with temperature sensor probe

  Specification:

Temperature Measuring Range: -9.9 ~ 99.9 deg C
Temperature Controlling Range: -9.9 ~ 99.9 deg C
Temperature Measuring Error: ± 0.5 deg C
Sensor: NTC (10K / 3435)
Control Accuracy: 0.1 deg C
Working Voltage: AC 220V
Working Current: Max. 220mA
Relay Contact Current: AC 5A / 220VAC
Operating Temperature: 0 ~ 50 deg C
Storage Temperature: -10 ~ 60 deg C
Cable Length: Approx. 40 inch / 1 meter
Item size (L x W x H): Approx. 3.3 x 3 x 1.3 inch (8.4 x 7.6 x 3.4 cm)
Packaging size: 90*90*50mm
Net weight: 182g
Package weight: 191g
Original box: NO
Color: gray

Package Content:
1 x Temperature controller

Download User Manual:ดาวน์โหลดคู่มือการใช้งาน
