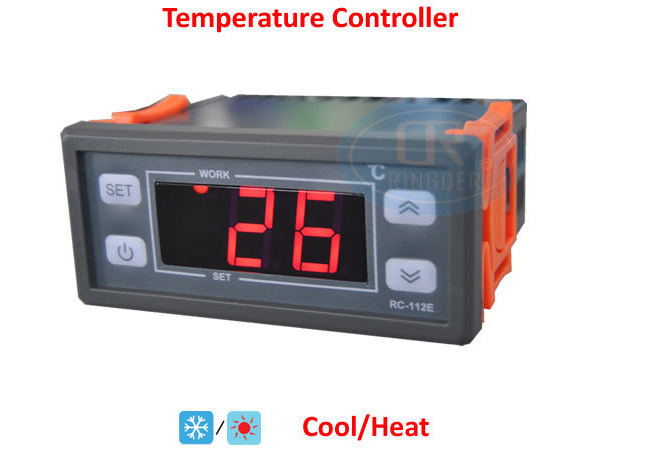

Features:

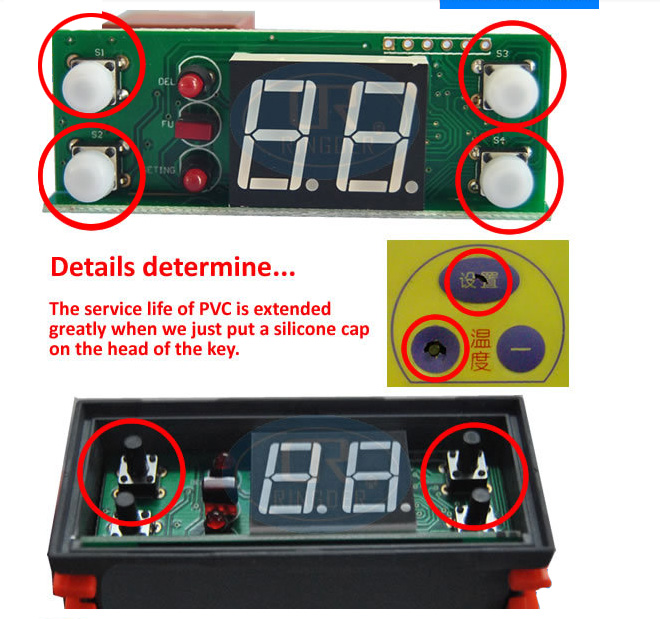

• LED display

• Best cost-effective

• Traditional design

Parameters:

• Temperature measuring and controlling range: -40~99°C

• Relay capacity:10A/250V

• Power supply: 220VAC±15%

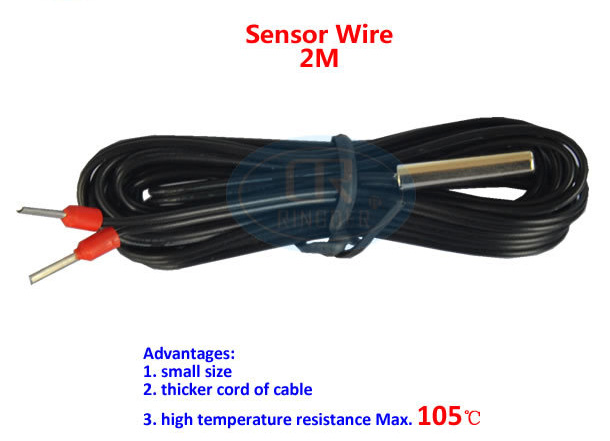

• Input: 1 NTC sensor; sensor wire: 2m(standard)

• Accuracy: ±1°C; Resolution: 1°C

• Consumption: ≤3W

• Cut-out size: 71×29(mm)

• Ambient requirements: temperature: -10~60°C; humidity: 20~85% (No condensate)

• Output: resistive load≤1100W/220V, inductive load≤275W/220V, filament lamp≤220W/220V

Function Menu:

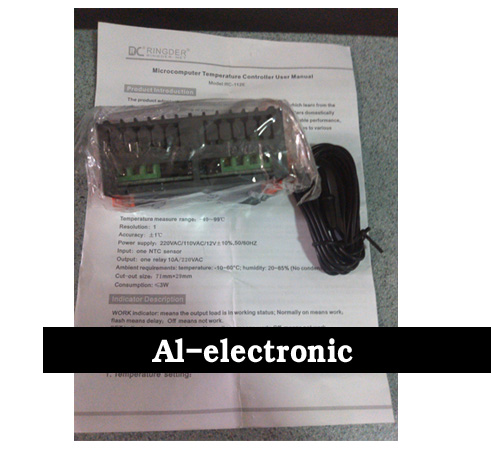

Package Includes:

1 * Temperature Controller

1 * Temperature sensor

1 * Instruction Manual

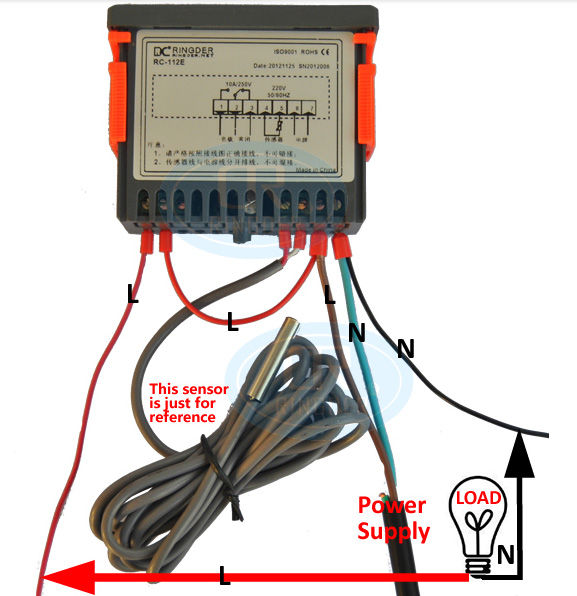

• When the power supply of the controller and the load are same, you may refer to the below real wiring diagram:

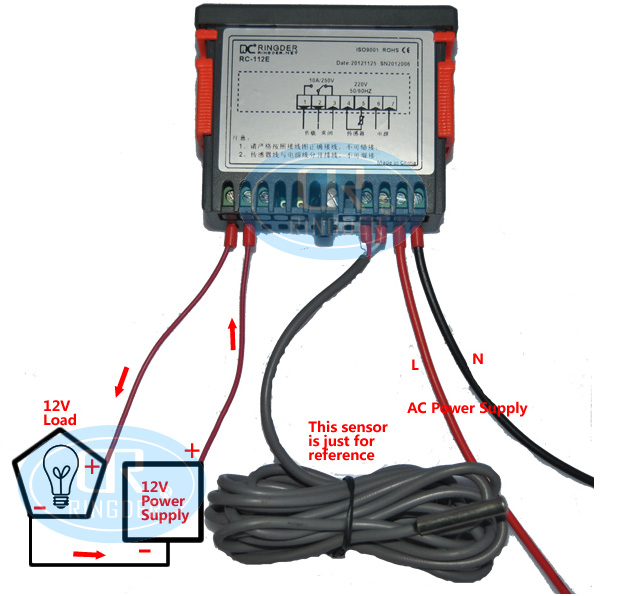

• When the power supply of the controller and the load are different, you may refer to the below real wiring diagram:
