Product Description

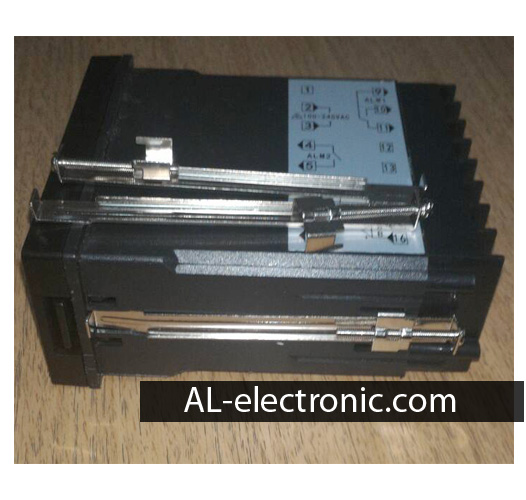

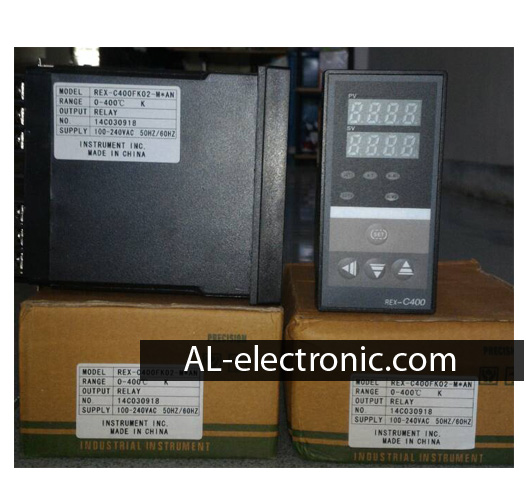

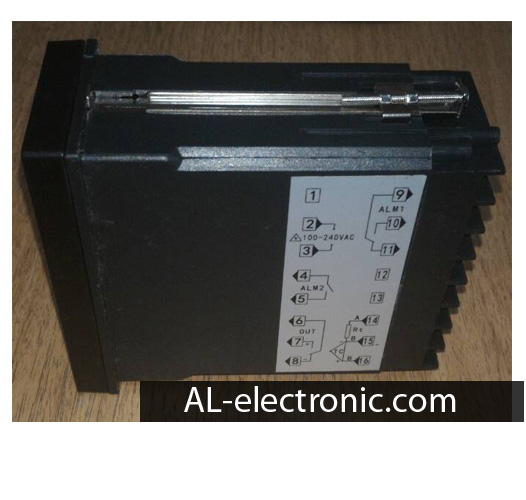

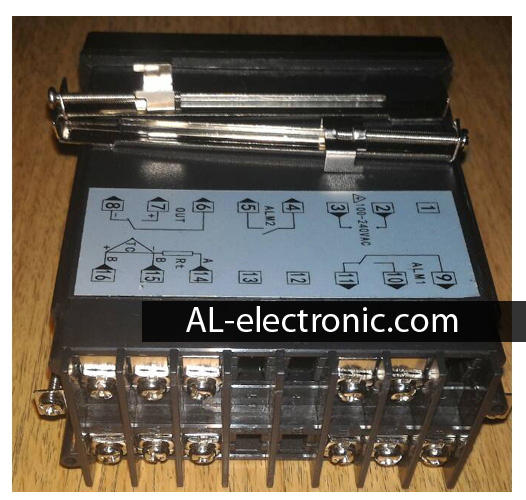

PID Digital Temperature Control Controller
Thermocouple Type K 0 to 400 Degree  instrument  REX-C400

• Color: Black

• Size: 11.2 x 7.1 x 7.1cm(LxWxH)

• Cold-end compensation tolerance: ±2°c(can be modified by software in 0~50°c)

• Resolution: 14 bit

• Sampling cycle: 0.5 Sec

• Process value (PV), Setting value (SV)

• Output, alarm and self-tuning can be indicated by: LED

• PIN control (including ON/OFF, step-type PID and continuous PID)

• Self-tuning control

• Relay output: contact capacity 250V AC 3A (resistive load)

• Alarm function output: 1 way

• Contact capacity of output: 250V AC 3A (resistive load)

• Setting value (SV): identical to measuring range (PV)

• Proportional band (P): 0~full range (ON/OFF control when set to 0)

• Integral time (I): 0~3600 sec (No integral action when set to 0)

• Derivative time (D): 0~3600 sec (No derivative action when set to 0)

• Heat-reset proportional cycle: 1~100 sec

• Detective temperature range:0 to 400°c

• Insulation resistance: >50M ohm(500V DC)

• Insulation resistance: 1500V AC/min

• Power Consumption: 10 VA

• Service environment: 0~50°c

• environment with no corrosive gas 30~85% RH

Package Content:

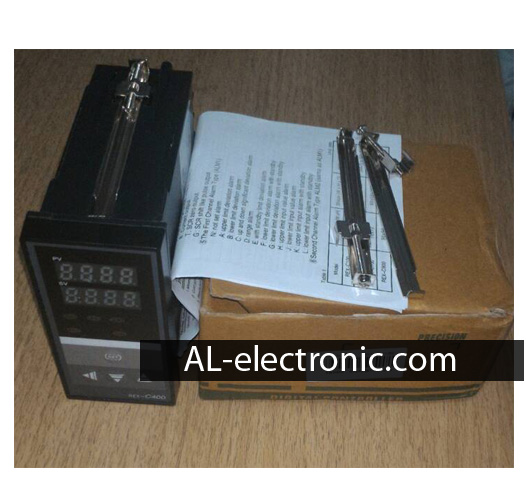

• 1 x Digital Temperature Control Controller

Packaging Details

Unit Type:

piece

Package Weight:

0.285kg (0.628lb.)

Package Size:

12cm x 9cm x 8cm (4.72in x 3.54in x 3.15in)









หากมีความสนใจ สามารถติดต่อสอบถามได้ที่ คุณอนุชิต ไล่ทัน โทร. 081-633-5650
