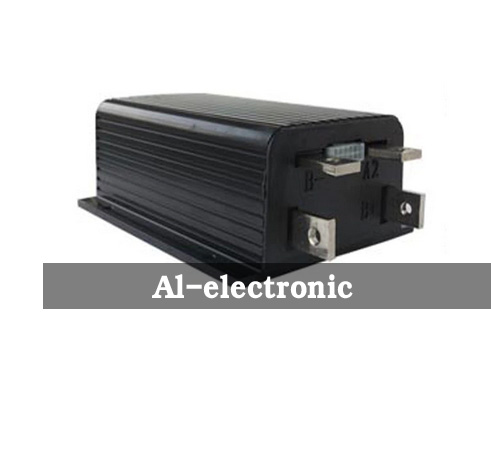

Factory price 24v 36v 48v 72v 360A dc controller for brushed dc motor, series excited motor

รหัสสินค้า : 201911-09001
~~99999 : 0.00 บาท~~
999 : 0.00 บาท

สินค้าพร้อมส่งภายใน 7 วัน

จำนวน ชิ้น สั่งซื้อสินค้า

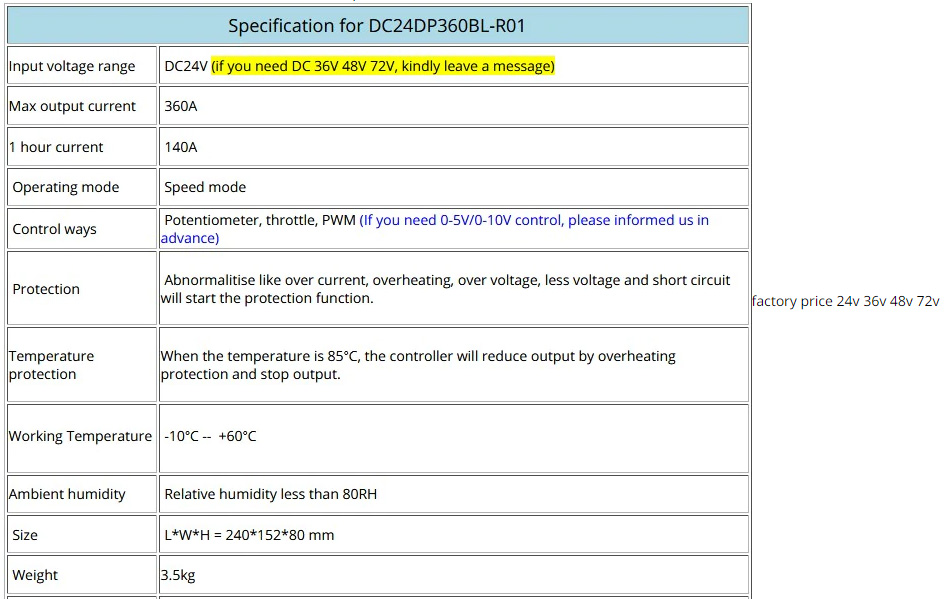

Product description

1. PWM pulse width modulation
2. Speed regulation ratio: 1:60
3. Speed regulation mode:
Potentiometer (10KΩ/2W)/signal, 0-5V analog signal Foot accelerator, the Hall handle
4. Input impedance: ≥10KΩ
5. Working voltage range: ±25% of nominal voltage
6. Soft start time: 1-5 S
7. Ambient temperature: -10℃~+60℃
8. Ambient humidity: relative humidity ≤80RH.(non condensing)
9. Current restriction protection
10. Remote start-stop can be realized
11. Applied for permanent magnet, separate excitation and series-excited motor
12. Thermal protection for controller cutting off output in case of overheating for controller to effectively protect controller and traveling crane safety.
13. Able to directly judge source of fault through luminous diode under working condition.
14. Stepless speed regulating and anti-phase braking control

15. Built-in precharging resistor and polarity protection diode provide convenience for installation and use
16. Under voltage and over voltage protection effectively protects storage battery and all components of controller assembly

17. 90 seconds no acceleration signal input can automatically cut off the power of contactor magnet coil to save the energy of storage battery.
18. Matched motor: PM DC MOTOR, Series excited, Separate excited motor.

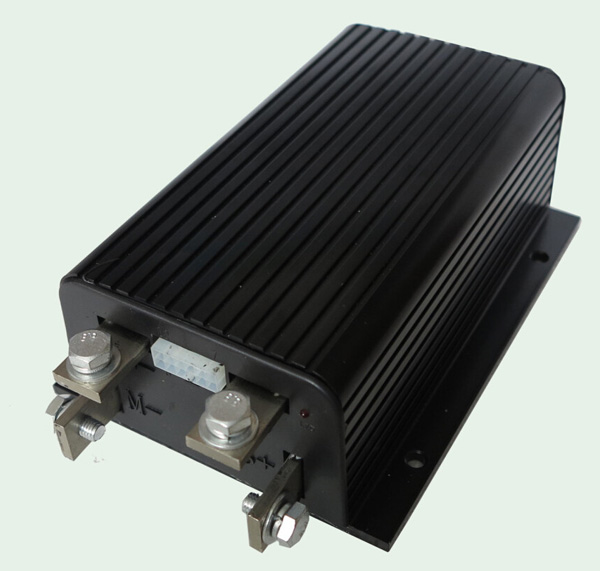

360A dc controller for brushed dc motor, series excited motor.
Product overview

Notice: Connecting wires of speed regulator will not be close to the wires of power source and output terminals.
To avoid unnecessary signal interference, shorten wire length of speed regulator as possible, and in case of above 0.5m,
please select the shielded wire.

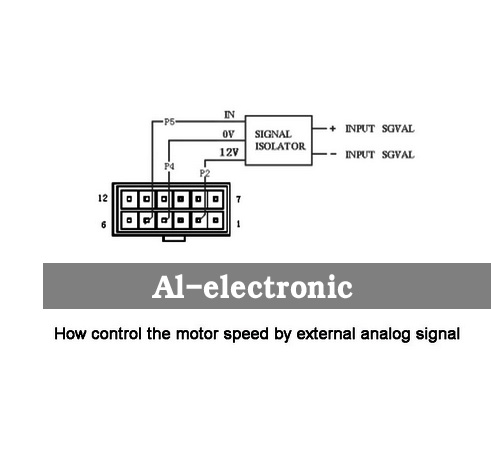

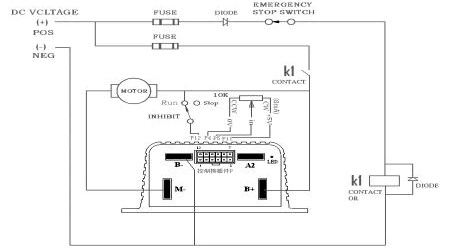

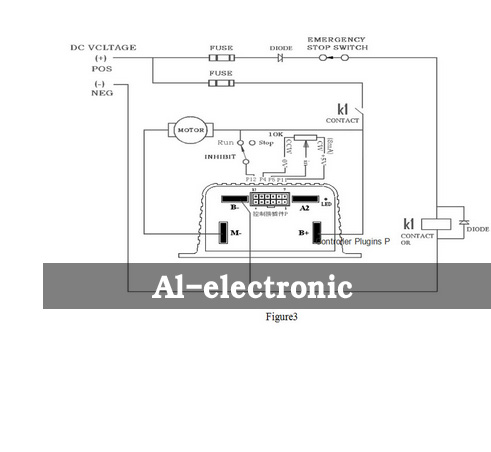

Connection methods for speed adjustment and controller:

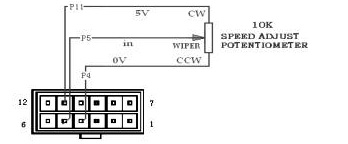

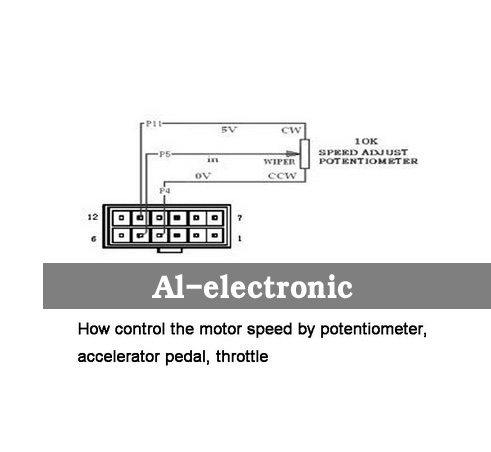

1. Wiring and installation for potentiometer-type speed regulator and controller (please select potentiometer-type controller)
H8f12e5260ecb4469a75ae17b674bf967s

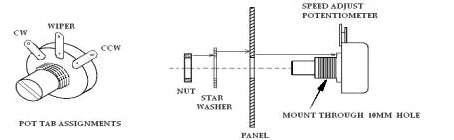

Use speed regulating potentiometer complying with Figure 6, and connect regulating potentiometer of 10k resistance among
terminals, P11, P4 and P5.
H8f8878debe1b4bfb8798ff4fa6623abbV

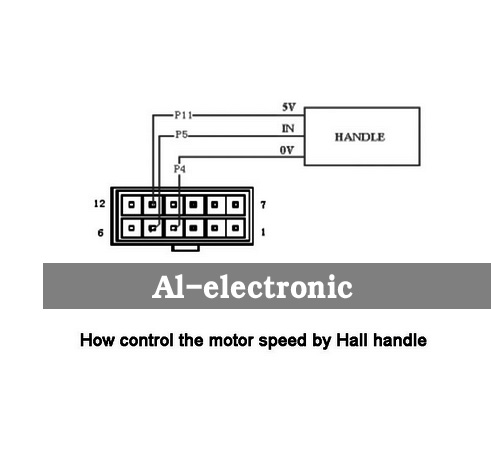

2.Wiring for the hall handle and the controller (please choose the hall handle type controller).
H8ce4e7cdfd094554976f64cba1ff879eH

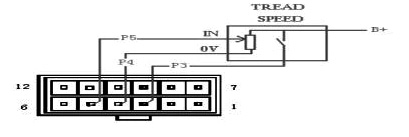

3. Wiring for the foot accelerator and the controlle.
Use the speed regulating foot accelerator complying, and connect regulating foot accelerator among terminals, P3, P4, P5 and B+.
(Note: if adopt resistance-type accelerator as foot accelerator, wiring method should refer to: potentiometer-type wiring diagram).
H2a57d3c5d0d544ea9de37e837c426eae6

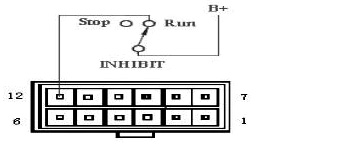

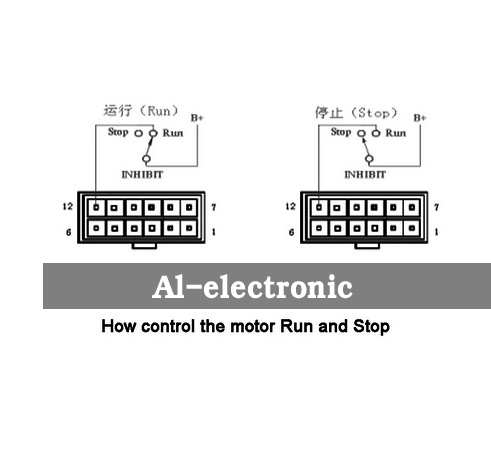

Connection for enable switch (INHIBIT):
Adopt mechanical contact switch to control the start-stop of motor:
Hab3a42a1e8cd4160a46259ee751a37d6S

Energizing operation steps
1. Prior to the operation with charge, should counter-clockwise spin speed regulating potentiometer to bottom (given signal is 0).
2. Connect the DC power supply.
3. Connect the enable switch (INHIBIT).
4. Clockwise slowly increase signal (potentiometer) and motor will speed up as signal. Persist in above operation till reaching scheduled speed.
5. When disconnect the enable switch (INHIBIT), the motor sliding will stop in case of turning-off energizing switch.
6. When disconnect the D.C input power supply of controller, the motor will stop rotating.

Motor switchover for forward and reverse direction:
Notice: Rated current value of power contactor and dual-pole dual-throw change-over switch (positive and negative contactor)
should be bigger or equal to 150-200% of the motor rated current, (control contact capacity should be greater than 6A).
In case of reversing for the motor, please select dual-pole dual-throw change-over switch (or electromagnetic contactor)
for switchover, the motor must be under stop position when using change-over switch for switchover, or it will cause serious
demagnetization of the motor, damage to the controller and accidents of the mechanical equipment.

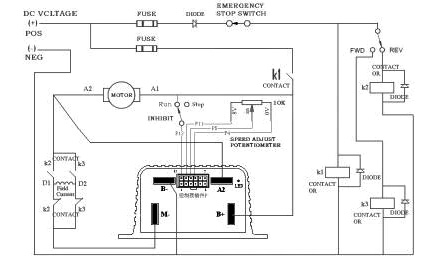

1. Diagrammatic drawing of using electromagnetic contactor for switchover
Hccc8313b451b4726b610577958d86bf2Q

2.Diagrammatic drawing of dual-pole dual-throw change-over switch for switchover. See the following figure
H12905b48a41446c39ae4d870c8d2758fT

factory price 24v 36v 48v 72v 360A dc controller for brushed dc motor, series excited motor

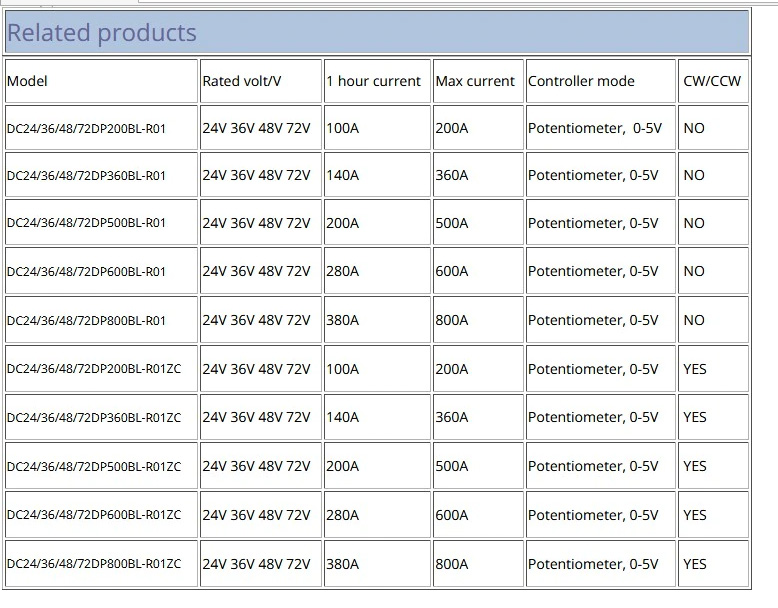

H16ce217c770f448f8f221a2e6101758a6

factory price 24v 36v 48v 72v 360A dc controller for brushed dc motor, series excited motor.

หากมีความสนใจ สามารถติดต่อสอบถามได้ที่ คุณอนุชิต ไล่ทัน โทร. 081-633-5650
