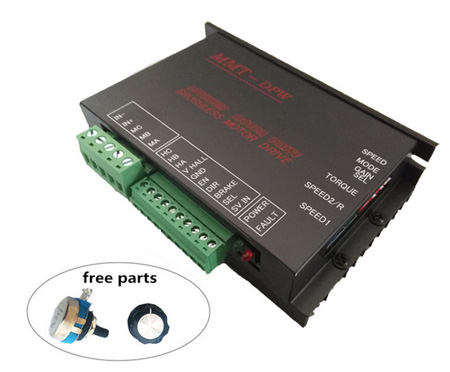

Model:10/50DPW15BL
- produce has three manners of working: speed control, current control and open-loop control.
- Control functions of braking, direction, enable, first-magnification, dual speed setting, etc. can be realized.
- Maximum current limit can be adjusted
- 0-5V signal control mode for external potentiometer, interior potentiometer and external analog quantity and soft start function.
- Time setting function for soft start.
- High-speed control, which has a full speed of one pole pair motor can reach 120000RPM.
- High-speed control, which has a full speed of one pole pair motor can reach 120000RPM.
- Regulation voltage of external potentiometer: 0--+5V potentiometer (10KΩ/2W).
Keyboard lock-up function.
- Output current inspection function: The driver monitors the real time output current automatically.
Technical parameters
| Power supply voltage VCC |
10—50VDC (error <5% is better) |
| Maximum output voltage |
Vout=0.95 VCC |
| Maximum output current |
15A |
| Switching frequency |
39KHz |
| Maximum speed (one pole pair motor) |
120，000rpm |
| Hall power supply voltage range |
7—12VDC Maximum output current is 30mA. |
| Locked-rotor protection time |
1.5 seconds |
| Ambient temperature |
-10-- +60 C |
| Ambient humidity |
relative humidity≤80RH |
| Analog quantity output |
0-- +5VDC |
| Soft start time |
20ms—10S. |
| appearance size |
122*35*72mm |
| weight |
0.3kg |
